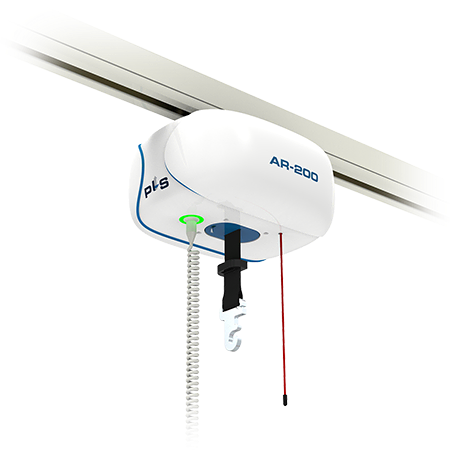

AR-200
The AR-200 is a high-quality and all-round Ceiling Hoist for a safe and respectful patient transfer. The Ceiling Hoist is extremely low noise in use, both in lifting and moving through the rail. The standard features are:
- An advanced battery protection system.
- Auto stand-by when not used for a while.
- No power consumption in stand-by.
- Slow start and stop function for high lifting comfort.
- Prepared for an electric spreader bar.
- Charged by hand control, using a magnetic wall charger.
- Double steering trolley for an easy and smooth transfer through the PLS Rail.
The AR-200 is available in 3 versions:
- AR-200
- AR-200D (Detachable)
- AR-200DR (Driven)
Instructional video
AR-200D
The AR-200 is also available in a detachable version, called the AR-200D. The AR-200D contains the same features as the AR-200.
AR-200DR
The AR-200 is also available in a driven version, called the AR-200DR. This unit is able to move electrically motorized through the rail with the push of a button.
Technical specifications
| Lift capacity (swl) | 200 kg |
| Dimensions | 307 x 270 x 143 mm |
| Weight | 10 kg |
| Power | Battery charged; 24 V/DC, 5.8 Ah |
| Minimal belt length | 140 mm |
| Maximal belt length | 2260 mm |
| Lifting velocity | 32-45 mm/sec |
| Lifts per full charge | >75 @200 kg, >40 @120 kg |
| Charging time | 8 Hours |
