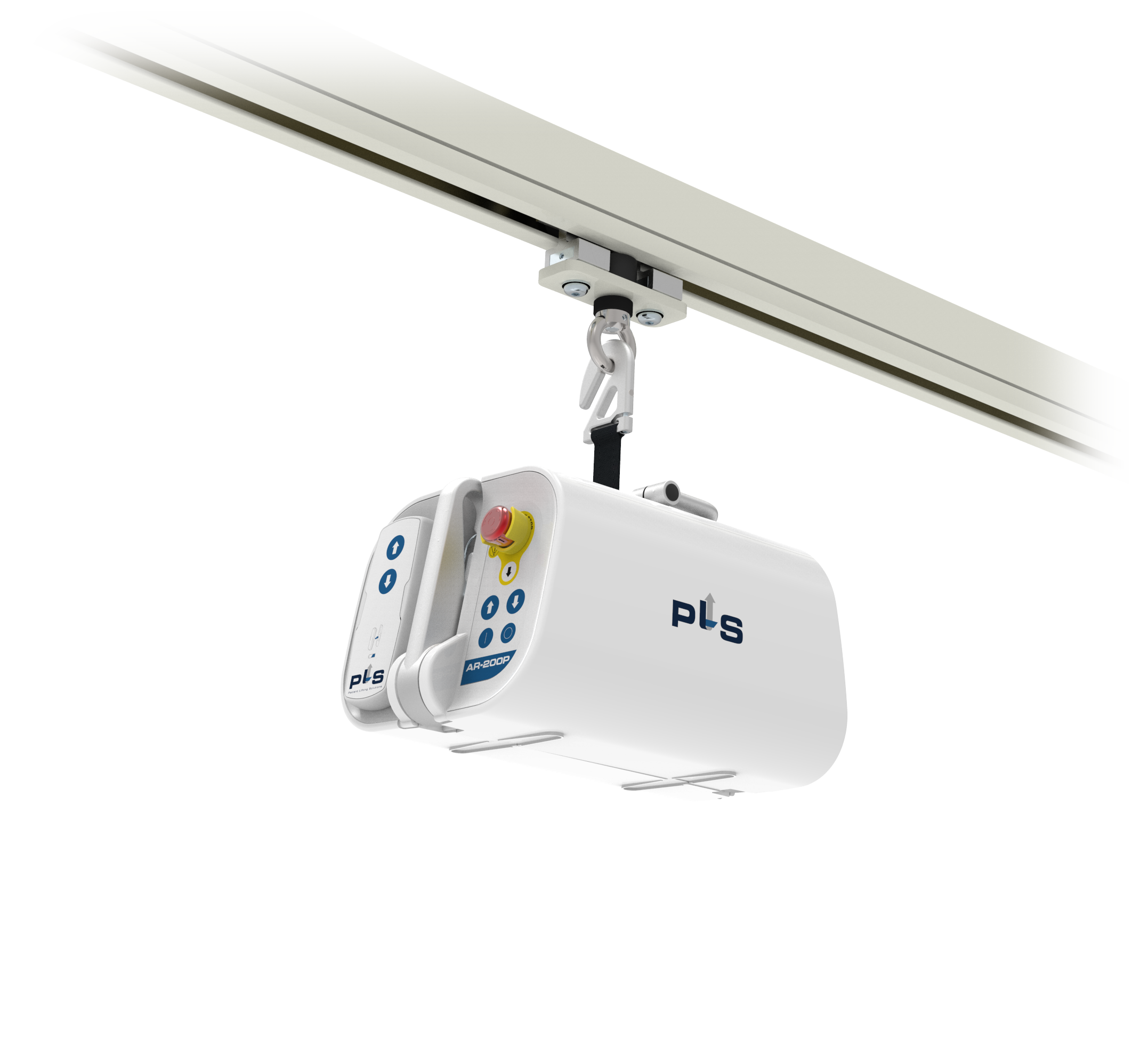

AR-200P
With the AR-200P a new chapter in patient transfers starts. A compact and light mobile device that functions simultaneously as a hoist and a spreader bar through cleverly designed fold out hooks.
Simply pick up the hoist by its handle and take it to the room where it is needed. Use the stick to latch the hook onto the trolley in the rail, fasten the sling and the hoist is ready to go. A dedicated wireless hand control or the control buttons on the hoist itself makes operating a breeze.
- Portable and light
- Easy to hook on the trolley with the extendable reach stick.
- Also features the ability to be used for room to room transfers (swinging from one room to the next under the door post).
- Slow start and stop function for high lifting comfort.
- An extra safe LiFePo4 battery with capacity for numerous transfers
- Charged by dedicated power supply.
- Double steering trolley for an easy and smooth transfer through the PLS Rail.
Technical Specifications
| Capacity (swl) | 200 kg (440 lbs) |

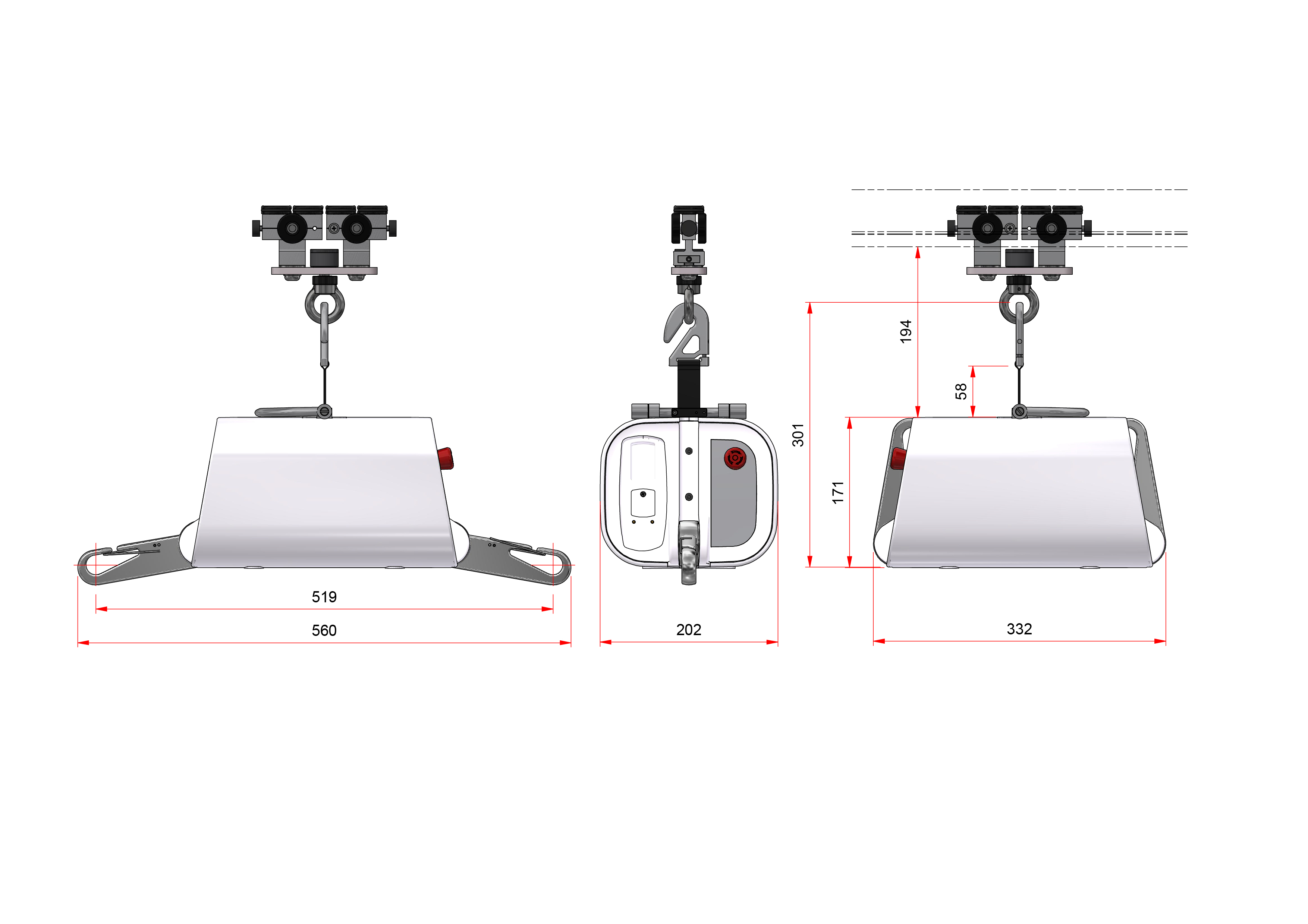

| Dimensions | 330 x 200 x 206 mm (folded) 560 x 200 x 206 mm (unfolded) |
| Weight | 6 kg |
| Power LiFePo4 | 25,6V, 1,1Ah |
| Lifting Tape | 25 x 2400 mm |
| Lifting speed | 26 mm/sec |
| Lifts per full charge | >58 @ 80 kg |
| Charging time | 1 Hour |
| Unique features | Advanced battery protection system Auto stand-by No power consumption in stand-by Easy to carry Overload alarm Room-to-Room functionality |
