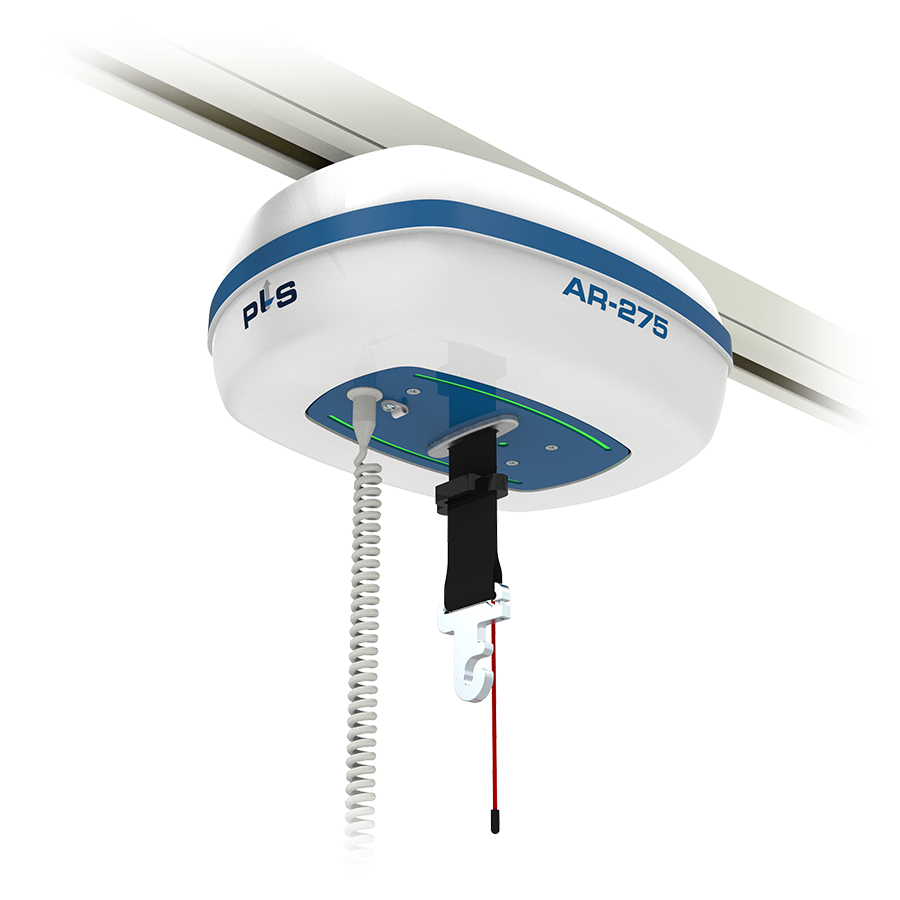

AR-275
The AR-275 is a heavy duty Ceiling Hoist for a safe and respectful patient movement. The high-quality Ceiling Hoist is extremely low noise in use, both in lifting and moving through the rail. The standard features are:
- An advanced battery protection system.
- Auto stand-by when not used for a while.
- No power consumption in stand-by.
- Slow start and stop function for high lifting comfort.
- Prepared for an electric spreader bar.
- Charged by hand control, using a magnetic wall charger.
- Double steering trolley for an easy and smooth transfer through the rail.
Instructional video
The AR-275 is also available in a driven version, called the AR-275DR. This unit features power traverse and is thus able to move electrically motorized through the rail with the push of a button.
Technical specifications
| Lift capacity (swl) | 275 kg |
| Dimensions | 377 x 297 x 135 mm |
| Weight | 14,7 kg |
| Power | Battery charged; 24 V/DC, 10 Ah |
| Minimal belt length | 140 mm |
| Maximal belt length | 2260 mm |
| Lifting velocity | 35-70 mm/sec |
| Lifts per full charge | >80 @200 kg |
| Charging time | 8 Hours |
