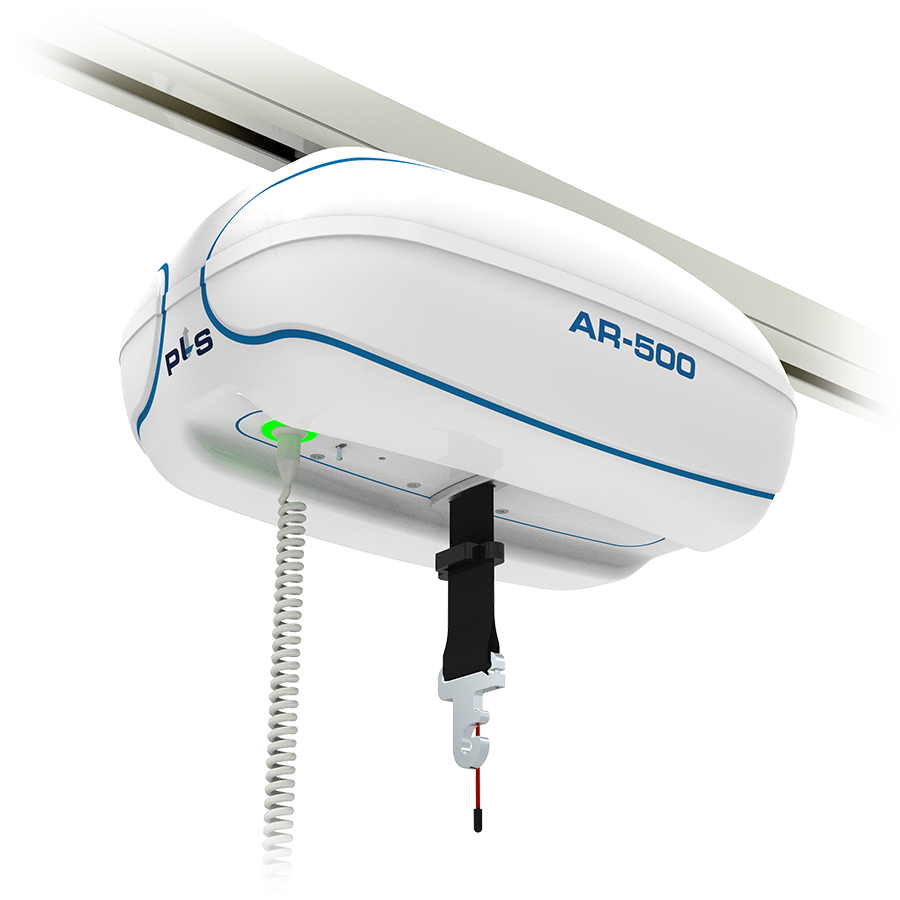

AR-500
The AR-500, with a stunning lift capacity of 500 kg, makes it the most powerful Ceiling Hoist in the world!
The AR-500 is used for a safe and respectful movement of bariatric care recipients. The high-quality Ceiling Hoist is extremely low noise in use, both in lifting and moving through the rail. Through the design, the Ceiling Hoist looks tenderly. The standard features are:
- An advanced battery protection system.
- Auto stand-by when not used for a while.
- No power consumption in stand-by.
- Slow start and stop function for high lifting comfort.
- Prepared for an electric spreader bar.
- Charged by hand control, using a magnetic wall charger.
- Double steering trolley for an easy and smooth transfer through the rail.
Technical specifications
| Lift capacity (swl) | 500 kg |
| Dimensions | 496 x 340 x 188 mm |
| Weight | 26,7 kg |
| Power | Battery charged; 24 V/DC, 20 Ah |
| Minimal belt length | 140 mm |
| Maximal belt length | 2260 mm |
| Lifting velocity | 32-70 mm/sec |
| Lifts per full charge | >30 @500 kg |
| Charging time | 8 Hours |
